PP PUMPS

Polypropylene Chemical Process Pumps
Industries Overview

We are Authorized Dealer, Supplier of Polypropylene CHEMICAL PROCESS PUMPS ( PP Pumps ) and our setup is situated in Philippines.
PLM series pumps are energy efficient complete ISO 2858 standard design, injection moulded, horizontal, back-pull out single stage end suction centrifugal pumps to provide optimum pumping solutions with reduced life cycle costs for all chemical applications.

Technical Data
Operaing Frequency 50Hz 60Hz
Capacity [Q] up to 500 m3/hr ( 2200 US gpm) 3100 US gpm (700 m3/hr)
Head [H] up to 120mts (394 ft) 492 ft (150mts)
Motor Power [P] up to 150HP ( 115 kW) 170HP (130 kW)
Viscosity up to 150 mPas (cP)
Suction Lift up to 8 m ( 26 ft ) with priming chamber *
Maximum Working Pressure 12 bar (175 psi)
Maximum Specific Gravity [SG] 1.8 - 3
Minimum Continuous Flow 3 m3/hr (13 US gpm)
Maximum Temperature PP - H : 820C (1800F), GFRPP : 900C (1940F)
Suction & Delivery Connection ANSI B16.5 - Class 150 , DIN ND 10
Shaft Seal Single (TB / TBR), DROTT, IMS, DMS & SS
Bearing Rolling Element Bearing
Lubrication Grease / Oil
Motor Compatibility IS 1231, IEC 72 - 1, NEMA*



PLM Pumps
PLM Pumps
PLC Pumps



Polypropylene PumpsManufacturer in Philippines, Polypropylene PumpsDealer, Suppliers and Exporters in Philippines

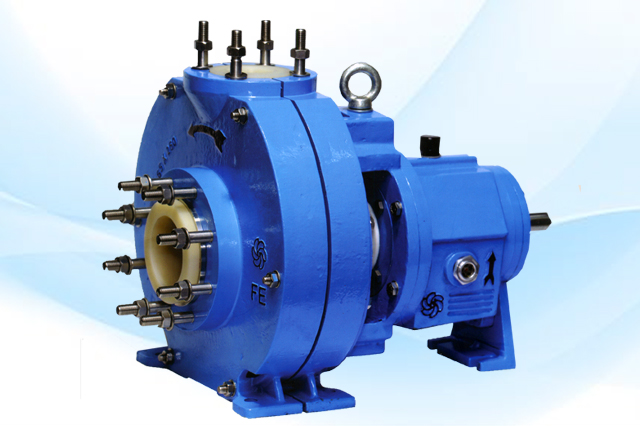

PVDF Chemical Pumps
Industries Overview

Smart Tek Log is a leading polypropylene pumps manufacturer in Philippines.We are also a top dealer, supplier and exporter of polypropylene pumps in Philippines. Being a leader in the industry, we are engaged in offering a superior range of polypropylene pumps in Philippines. Our range of polypropylene pumps are designed by our professionals. At Smart TekLog polypropylene pumps are manufactured using high grade components and latest technology by our team of technical experts who have in-depth understanding of each and every component and the functional features of these polypropylene pumps. Our polypropylene pumps in Philippines are widely appreciated for corrosion resistant nature and excellent finish.

Moreover, the polypropylene pump is tested on various parameters to ensure that the product delivered by Smart Tek Log is of high quality. These polypropylene pumps are available with open and closed type impellers. You can avail these polypropylene pumps from Smart Tek Logwith great specifications and at reasonable price in Philippines.

Smart Tek Log is an authorized dealer, supplier and exporter of polypropylene pumps Philippines. We supply and export our polypropylene pumps in and around Philippines.

Features

  • Low maintenance due to minimum components.
  • Low power consumption
  • High Capacity
  • Leak proof and also run dry without damage in rotating parts.
  • Enable effective solutions
  • Controls Air Pollution
  • Compact design

Application

  • Electroplating
  • Fertilizers plants
  • Paper and pulp industries
  • Phosphoric acid plants
  • HCL acid handling
  • Pharmaceutical industries
  • Corrosive liquid handling
  • Dyes and pigment industries
  • Thermal and atomic power plants
  • Effluent treatment handling
  • Scrubbing process
Technical Data
Operaing Frequency 50Hz 60Hz
Capacity [Q] up to 500 m3/hr ( 2200 US gpm) 3100 US gpm (700 m3/hr)
Head [H] up to 120mts (394 ft) 492 ft (150mts)
Motor Power [P] up to 150HP ( 115 kW) 170HP (130 kW)
Viscosity up to 150 mPas (cP)
Suction Lift up to 8 m ( 26 ft ) with priming chamber *
Maximum Working Pressure 12 bar (175 psi)
Maximum Specific Gravity [SG] 1.8 - 3
Minimum Continuous Flow 3 m3/hr (13 US gpm)
Maximum Temperature PVDF:120°C(250°F)
Suction & Delivery Connection ANSI B16.5 - Class 150 , DIN ND 10
Shaft Seal Single (TB / TBR), DROTT, IMS, DMS & SS
Bearing Rolling Element Bearing
Lubrication Grease / Oil
Motor Compatibility IS 1231, IEC 72 - 1, NEMA*
