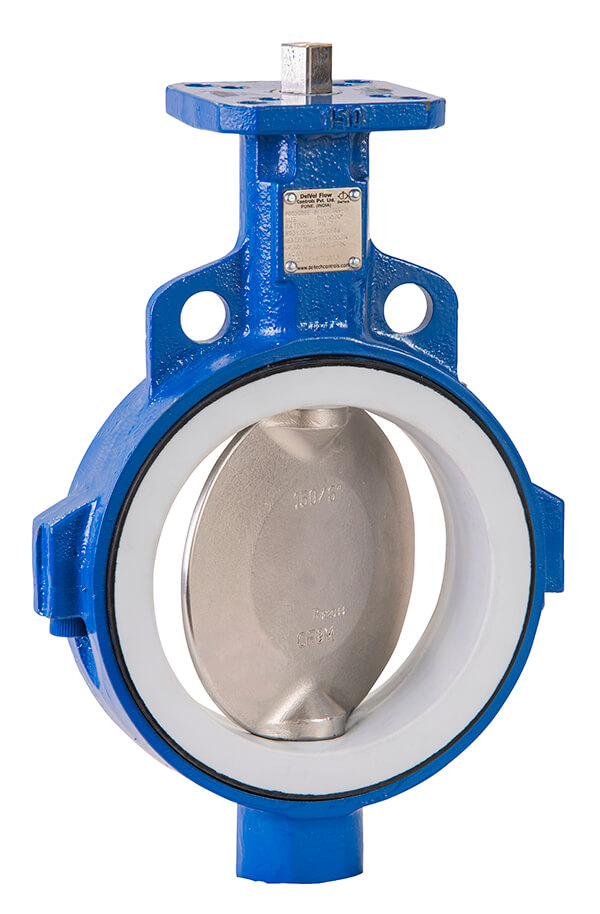

Series 40/41 Split Body Lined
| Body Style | Series 40 – Wafer Series 41 – Lug |
| Body | CI, DI, CS, SS |
| Disc/Stem | 316 SS Duplex SS |
| Seat | PTFE lined EPDM |
| Size Range | 2” to 24” (DN 50 to 600) |
| Pressure Rating | 150 PSIG (PN 10) |
| Leakage Class | Class VI |
| Design Standard | API 609, BS EN 593 |
| Testing Standard | API 598, BS EN 12266-1 |
