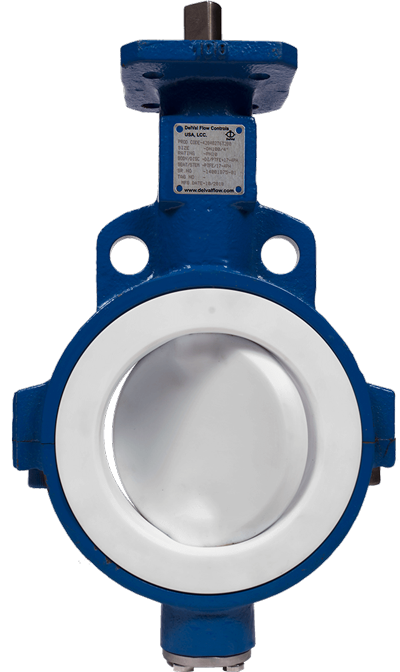

Series 42/43 Lined

Enquiry Now

DESCRIPTION:

  • PFA is superior to PTFE in terms of flexibility, particularly when it comes to tubing applications. On the other hand, PFA’s flex life (i.e., capacity to endure repetitive folding) is lower than PTFE. PTFE is slightly more resistant to heat than PFA. PFA is more affected by water absorption and weathering but is superior to PTFE when it comes to salt spray resistance. The most significant quality of PFA over PTFE is its electrical properties. It possesses the dielectric constant of PTFE as well as a very similar dissipation factor; yet PFA has a dielectric strength three to four times higher than PTFE.
    • Body Style

    Series 42 - Wafer

    Series 43 - Lug
    Body

    DI, CS, SS
    Disc/Stem

    316 SS

    Duplex SS

    PTFE Lined

    PFA Lined

    Halar® Coated
    Seat

    PTFE/Silicone, PTFE/FKM

    PFA/Silicone, PFA/FKM
    Size Range

    2" to 24“ (DN 50 to 600)
    Pressure Rating

    150 PSIG (PN 10)
    Leakage Class

    Class VI
    Design Standard

    API 609, BS EN 593
    Testing Standard

    API 598, BS EN 12266-1

      Features

    • ISO 5211 top plate for direct mounting of a wide range of actuators, handles, and gears
    • Resilient seat energizer extends completely around seat, including disc hub area
    • One piece disc/stem in high strength design – available in SS316 thin profile with hand polished edge and hubs, or PTFE/PFA encapsulated (min. 3mm thick)
    • Heavy duty acetal bushing
    • Bi-directional U-cup stem seal
    • Heavy duty, two piece epoxy coated body with extended neck and locating holes
    • Precision machined PTFE/PFA seat (min. 3mm thick)
    • Live-loaded stem seal system by a set of Belleville spring washers on the upper and lower stem
