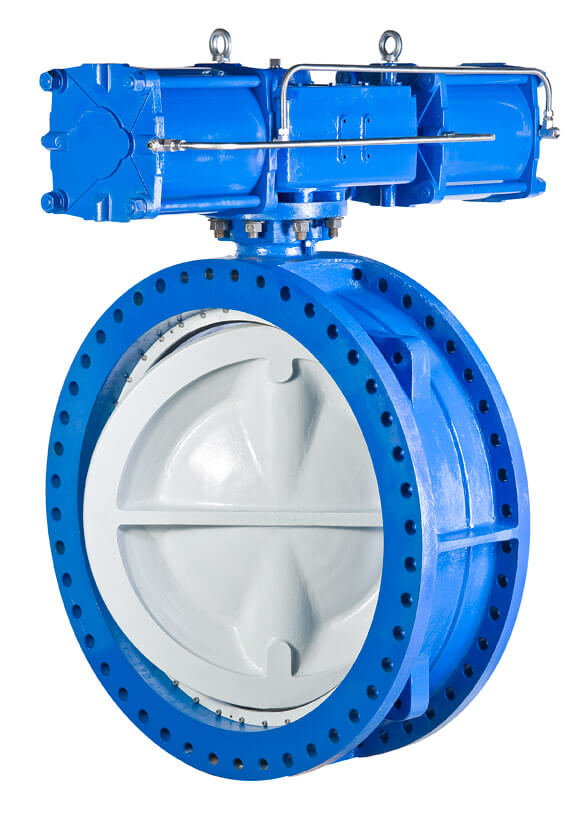

Series 55 Double Flanged Double Offset Resilient Seated
| Body Style | Series 55 – Flanged |
| Body | CI, DI, CS |
| Disc | Nylon Ductile Iron (NDI), CF8M |
| Stem | 410 SS, 17-4PH |
| Seat | EPDM, Buna-N, FKM, Silicone |
| Size Range | 3” to 72” (DN 80 to 1800) |
| Pressure Rating | 3” to 48” (DN 80 to 1200) up to 230 PSIG (PN 16) 52” to 72” (DN 1200 to 1800) up to 150 PSIG (PN 10) |
| Leakage Class | Class VI |
| Design Standard | BS EN 593 / API 609 / IS 13095 (FTF acc. to EN558 basic series 13) |
| Testing Standard | API 598, BS EN 12266-1 |
