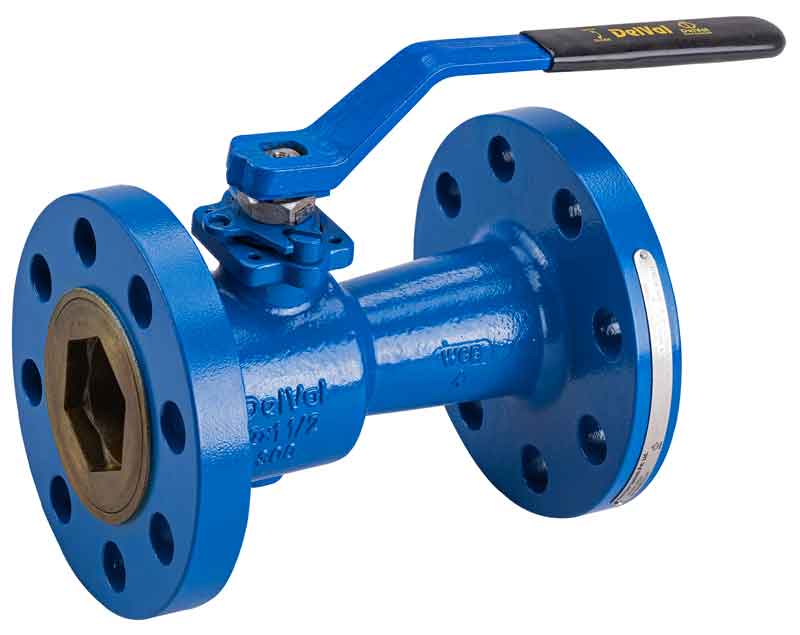

Series 75/76 One-Piece

Enquiry Now

DESCRIPTION:

  • Firesafe design and NACE versions available.
    • Body Type

    Flanged RF
    Body

    CS, SS
    Ball

    F316
    Stem

    316 SS
    Seat

    PTFE, RTFE, Ultra, PEEK
    Size Range

    1” to 4” (DN25 to 100)
    Pressure Rating

    Series 75 – Class 150

    Series 76 – Class 300
    Leakage Class

    Rate A acc. to ISO 5208
    Design Standard

    API 608, ASME B16.34
    Testing Standard

    API 598, ISO 5208

    Features

    • Solid, one-piece ball
    • Top plate drilled to ISO 5211 bolt circle dimensions
    • Contoured seat design with no seat extrusion
    • Fully adjustable packing gland with actuator mounted
    • Live loaded graphite stem packing
    • Robust stem provides real blowout proof design
    • Anti-static device between ball-to-stem and stem to-body connection
    • Self relieving seats as standard
